KCM 150 N

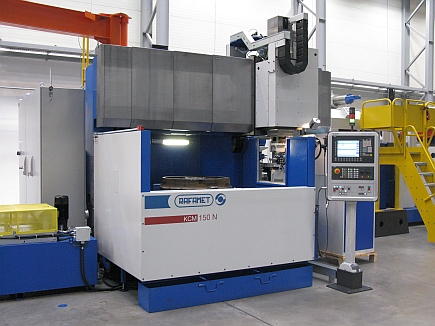

The KCM 150 N single-column wheel boring machine is designed for machining of railway wheels.

The machine tool can perform the following turning operations controlled by technological program:

-Wheel hub fine boring;

-Hub facing;

-Chamfering;

With a special equipment, it is possible to extend the machine capabilities to the following operations:

-Wheel hub rough boring with 1-mm allowance on each side;

-Machining of solid wheels;

-Machining of wheel centres;

-Boring of tyres;

-Drilling of assist oil injection holes in wheel hubs;

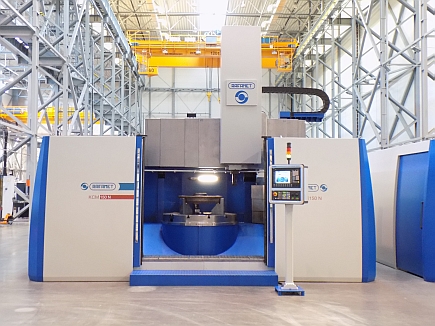

For wheel production purposes a double railhead version of increased productivity can be provided.







Untitled Document
[1]

 [2]

 [3]

 [4]

 [5]

 [6]

TECHNICAL SPECIFICATIONS



MODEL KCM 150N
SPECIFICATION  A-2 A-3
Work Table
Table diameter
 mm 1500 1500
Max. turning diameter
 mm

1800

 1800
Max. tread diameter of solid wheel/wheel tyre
 mm 1250 1250
Max. weight of workpiece
 ×10kN 6 6
Max. continuously variable rotation rates of table

Cast iron table rpm 250 270

Forged steel table

rpm

—

370
Power of main drive motor
 kW 55(1) 110
Cross – rail (fixed)
Max. height of turning
 mm 400(2) 400(2)
Railhead
Number of railheads

   1 2
Ram stroke
 mm 400(2) 400(2)
Range of feed rates in X and Z axes
mm/min

0,1÷6000

 0,1÷6000
Ram cross-section
 mm 250×250 250×250
Machine tool overall dimensions and weight
Machine tool overall dimensions：

Length mm 4300(2) 5000(2)
Width mm 4435(2) 4435(2)

Height

mm

4205(2)

4205(2)
Approximate weight of machine tool
 ×10kN 21 21
Machine tool accuracies
X–axis positioning accuracy Mar (L=1000 mm)
 mm 0，015
Z–axis positioning accuracy Mar (L=1000 mm)
 mm 0，015
X–axis positioning repeatability RPMax. (L=1000 mm) mm
mm 0，012
Z–axis positioning repeatability RPMax. (L=1000 mm) mm
 mm
0，012
(1) - Another track gauge to be agreed upon. Multi-gauge version available.
(2) - For track gauge of 1435 mm and standard execution.
(3) - The height of machine tool base is zero reference.
(4) - Lifting height of machine tool measuring device at moving zero position.
