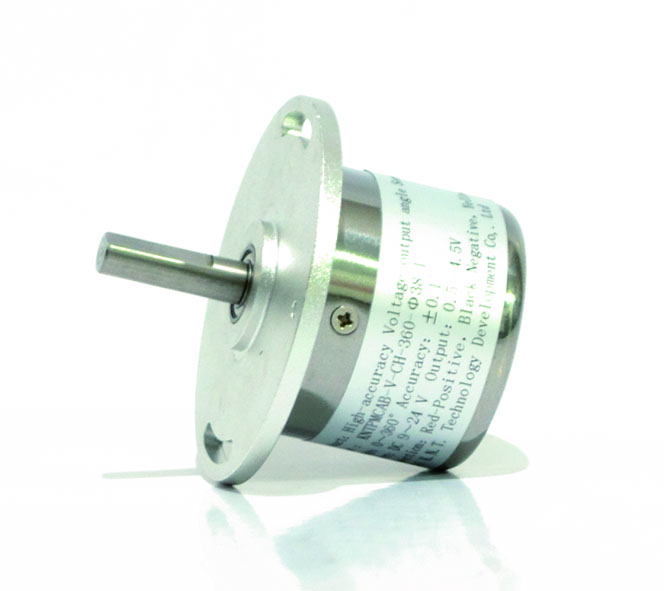

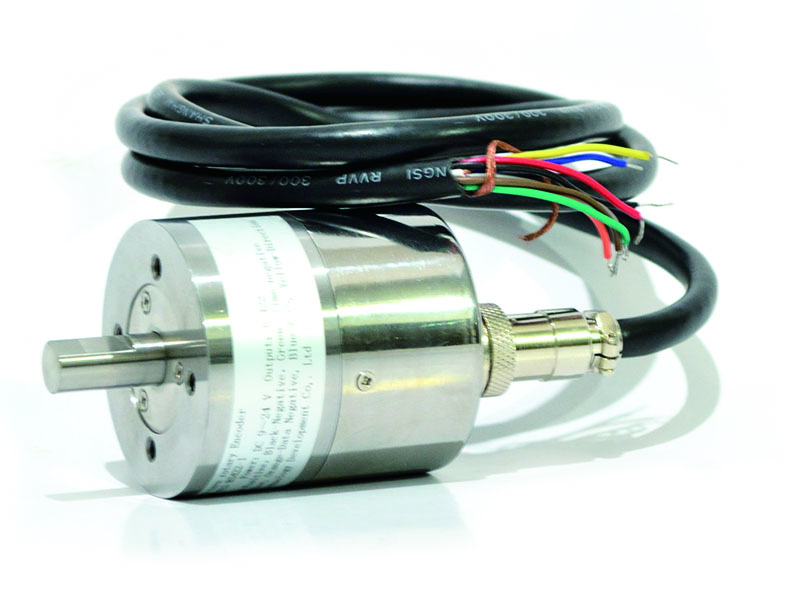

KNT series high-precision angle encoder is developed by our company, programmed calibration and conversion, to achieve single-lap 14-bit, multi-lap 14-bit resolution, 0.5 o high-precision measurement.

This series of angle encoder has no contact, long life, high resolution, low temperature drift, excellent linearity, fine reset, high frequency response, multi-protection, anti-interference, anti-vibration, anti-shock, suitable for water, oil, gas, vibration, shock and other harsh industrial environment, ideal angle encoder for better performance-to-price ratio.

Key Features of the KJ series encoder:

1.Contactless magnetic rotate encoder for accurate angular measurement over a full turn of 360°.

2.System-on-chip for sensor elements, analog front end and digital signal processing in a single device.

3.Absolute and incremental output. The angle measurement provides instant indication of the magnet’s angular position with a resolution of 0.0879° = 4096 positions per revolution.

4.A user-programmable incremental output is available.

5.Ideal for applications in harsh environments due to contactless position sensing.

6.No calibration required.

7.Provide variable output modes:

        1).Pulse width modulated (PWM) output

        2).0-5V Analog output signal

        3).4-20mA Current output signal

        4).TTL output signal号

        5).Quadrature A/B and Index output signal

        6).Step / Direction and Index output signal

        7).RS232, RS485, RS422, or CAN2.0 output

8.The revolution number can be 2

9.User programmable zero position.

10.Power less than 0.4W.

11.Wide temperature range: - 40°C to + 125°C.

12.Making the encoder suitable for replacement of various optical encoders.
